PC Only Gaming:
Radeon HD 3870 Mac & PC Edition
versus GeForce 8800 GT

Originally posted June 13th, 2008, by rob-ART morgan, mad scientist

If you are a "hard core" gamer that runs "PC only" 3D games, then you'll want to know how the new Radeon HD 3870 Mac & PC Edition stacks up against the GeForce 8800 GT and other GPUs. We tested several PC games under Vista 64-bit Ultimate in the Boot Camp partition of our Mac Pro 3.2GHz octo-core Mac Pro "early 2008."

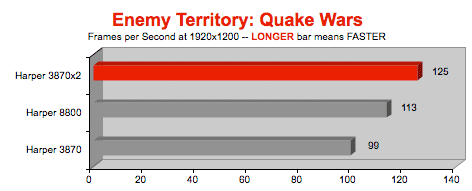

For Enemy Territory: Quake Wars (ETQW) we recorded our own 4897 frame netdemo which includes running/shooting and flying/shooting. Also "r_useThreadedRenderer" was set to "2" (enabled) instead of the default "0" (disabled).

For the UT3 tests, we used the Suspense Flyby. The Flyby emphasizes GPU speed. Though a Botmatch is more like actual game play, the artificial intelligence varies the actions of Bots from run to run, making it impossible to get a repeatable results. Also, the Suspense Flyby is available for you to try yourself in both the Demo and Retail versions on the game.

Take 2 Interactive PREY
We use a demo file in our benchmarking that we downloaded from Overclockers in Australia. High Quality was selected (including 8X anisotropy and dynamic shadows).

Activision CALL of DUTY 4: Modern Warfare
We ran a timedemo created by Bryan C. of InsideMacGames with maxFPS set to 500 to overcome the 90 fps default max.

LP has a built-in two part Performance Test (Snow and Cave). We posted the results for the Snow sequence below.

THQ Company of Heroes
Using HIGH settings and DX9 shaders, we ran the built-in performance test for 90 seconds.

Electronic Arts CRYSIS
We chose the GPU benchmark and MEDIUM settings. We had some odd results when in Crossfire mode. We'll add those later once we've done more testing.

Harper = Mac Pro 3.2GHz "Harpertown" (early 2008)
8800 = nVIDIA GeForce 8800 GT (Apple CTO option or kit; different ROM code for "early 2008" versus "2006/2007" Mac Pro)
3870 = ATI Radeon HD 3870 Mac & PC Edition (Retail upgrade kit)
3870x2 = Dual ATI Radeon HD 3870 Mac & PC Edition cards with Crossfire jumper attached and Crossfire enabled using the Control Center app.
2600 = ATI Radeon HD 2600 XT (Apple OEM)

Vista 64 Ultimate was running in the Boot Camp partition of a Mac Pro 3.2GHz octo-core with 16GB of RAM.

The GeForce 8800 GT carries its 3D edge over to Windows, but it's nice to know that the ATI Radeon HD 3870 Mac & PC Edition "holds its own" plus it supports Crossfire if you happen to have two cards. That's signficant for "hard core" gamers who prefer running their 3D games under Windows. Why? Because two GeForce 8800 GTs will NOT run in SLI mode.

The "early 2008" Mac Pro makes using the Crossfire jumper easy since there are two side-by-side x16 PCie slots. The "2006/2007" Mac Pro only has one x16 slot. and the one next to it is an x1 slot. Unless you "downgrade" slots 1 and 2 to x8 using the Expansion Slot Utility, Crossfire will be counter productive. But then, who wants to run a high powered pair of GPUs in x8 slots?
