EXTERNAL SSD RAID: As fast as internal?
(Part Two: MacBook Pro)
Friday, June 4th, 2010, by rob-ART morgan, mad scientist
Part One showed how fast SSD RAID sets run on the Mac Pro. In this Part Two, we switch to a MacBook Pro to compare the speed of a single internal HDD and SSD to external HDD and SSD RAID 0 sets. (ALL GRAPHS display Megabytes per Second .)
LEGEND of GRAPHS
Quad PM5 SSD = FirmTek SeriTek 5PM enclosure with four OWC Mercury Extreme 200G SSDs connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Dual Pocket SSD = Ci Design Pocket View enclosure with dual OWC Mercury Extreme 200G SSDs connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Dual Pocket HDD = Ci Design Pocket View enclosure with dual Seagate Momentus 7200.4 500G HDDs connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Dual external SSD = FirmTek SeriTek 2eEN4 enclosure with dual OWC Mercury Extreme 200G SSDs connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Dual external HDD = FirmTek SeriTek 2eEN4 enclosure with dual WD Caviar Black 2TB HDDs connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Single external SSD = FirmTek SeriTek 2eEN4 enclosure with single OWC Mercury Extreme 200G SSD connected to the Sonnet Technology Tempo SATA Pro ExpressCard/34
Single internal SSD = Single OWC Mercury Extreme 200G SSD inside the MacBook Pro
Single internal HDD = Single Seagate Momentus 7200.4 500G inside the MacBook Pro
NOTE: Icy Docks were used to mount the SSDs inside the SeriTek 2eEN4 and PM5 enclosures. QuickBench 4.0.4 was used to test large sequential and small random transfer speeds.
INSIGHTS
1. The Sonnet Technology's Tempo SATA Pro is the fastest ExpressCard/34 SATA adapter money can buy, yet it tops out at 200MB/s. That's frustrating when an SSD drive is capable of 250+MB/s and dual SSDs are capable of 500+MB/s. Because of that, you'll see from the graphs that a single SSD is faster than any combination of external SSDs or HDDs.
FLASH: Sonnet Technology is giving 15% off on the Tempo SATA Pro ExpressCard for any MacBook Pro with an ExpressCard/34 slot. This card is twice as fast as any other SATA ExpresssCard we have tested. When you get to the checkout page where you enter your credit card, there is a place to enter the "Specials/Promotion Codes." Enter "BareFeats" -- offer good through July 1st.
Some mad scientists replace the internal SuperDrive of the MacBook Pro with a kit that mounts a second internal HDD or SSD. Stripe them together and you will get the full 500+MB/s dual SSDs are capable of in a RAID 0 set. (See the WHERE TO BUY section below if you want to go there.)

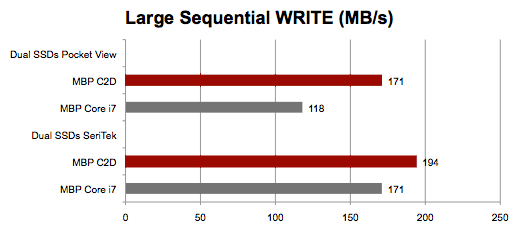

2. The 2009 MacBook Pro C2D (17") posted significantly faster large sustained WRITE speeds than the 2010 MacBook Pro Core i7 (17"). The external results posted above were for the C2D model. Here's an example of how they compare doing the same thing externally:
That shows that not all ExpressCard slots are created equal.
3. The fastest notebook HDD (Seagate Momentus 7200.4) maxes at 100MB/s. If you need a faster external HDD, there is always the 3.5" HDDs like the WD Black 2TB which can reach 140+MB/s. But no matter what enclosure you connect to your MacBook Pro's ExpressCard and no matter how many drives you stripe, they will still max out at 200MB/s.
