SHOOTOUT:
RAID 0 vs RAID 3 vs RAID 5 vs RAID 6
HighPoint RocketRAID 3522

Originally posted April 11th, 2008, by rob-ART morgan, mad scientist

We chronicled the features of the new HighPoint RocketRAID 3522 in a previous article but this time we wanted to show you the difference in speed between eight Samsung Spinpoint F1 one terabyte drives in various RAID sets. In each case, we used the browser based RAID Manager provided by HighPoint to define the RAID set.

The enclosures used were the FirmTek SeriTek/2enN4 4 bay eSATA enclosure and the Wiebetech RTX 400 four bay eSATA enclosure. Each was attached to the RocketRAID 3522 using a special cable with a mini SAS connector at one end and four eSATA connectors at the other. Test platform was the "early 2008" Mac Pro 3.2GHz. We installed the RR3522 in slot 3 (x4).

ANALYSIS
As you can see by the speeds, when using eight drives like the Samsung Spinpoint F1, the speeds are fast enough in all three RAID modes to capture and playback uncompressed HD video without dropping frames. With the pricing of the RR3522, the Samsung drives, and the enclosures, there's no need to "live on the edge" with RAID 0 sets. You can now enjoy the "safety net" of RAID 5 or 6 when capturing, editing, and storing your precious video and audio projects.

RELATED LINKS
See Bare Feats' test of two, three, and four drive SAS RAID versus two, three, and four drive SATA RAID inside the Mac Pro "Harpertown."

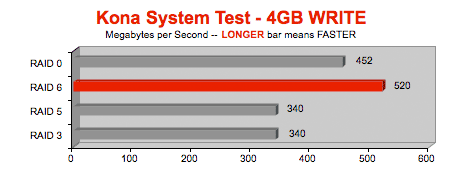

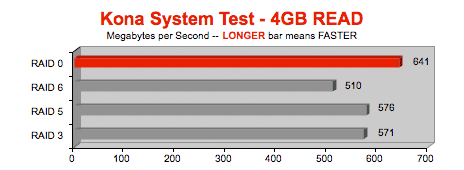

We used the popular AJA Kona System Test 2 to measure the speed using 1920x1080 10 bit test with a 4GB test size.

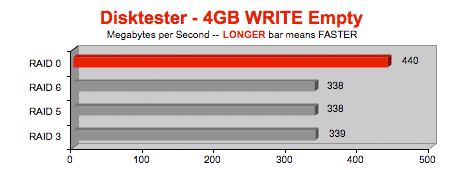

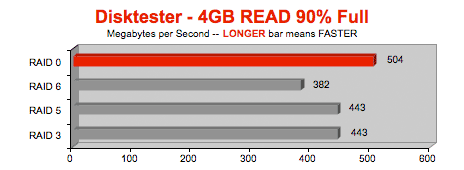

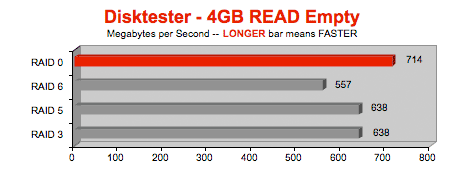

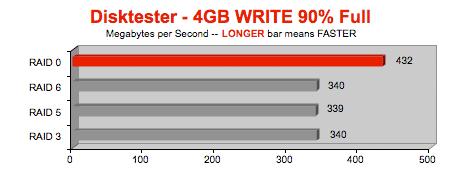

Lloyd Chambers created Disktester which we have found to be a useful predictor of video capture/playback performance. We used the Area Test to simulate an empty and 90% full volume.
