GeForce GTX 780 6G:
Mac Pro Tower 'Sweet Spot'?

Posted Friday, July 25th, 2014 by rob-ART morgan, mad scientist

Though most of the attention is on the new 2013 Mac Pro. we continue to explore ways to 'pump up' the legacy Mac Pro towers. One of our favorite upgrade paths is the graphics processing unit aka GPU. We recently tested the GeForce GTX 780 with 6G of GDDR5 video memory (courtesy of MacVidCards). It just may be the 'sweet spot.' We'll explain after you peruse the graphs.

GRAPH LEGEND
TITAN Black = GeForce GTX TITAN Black with 6G of VRAM
G780 Ti = GeForce GTX 780 Ti with 3G of VRAM
G780 6G = GeForce GTX 780 with 6G of VRAM
G680 = GeForce GTX 680 Mac Edition with 2G of VRAM
R9_280X = Radeon R9 280X with 3G of VRAM
R7950 = Radeon HD 7950 Mac Edition with 3G of VRAM
R5870 = Radeon HD 5870 with 1G of VRAM

Test 'mule' was a 2010 Mac Pro 3.33GHz Hex-Core.
(RED graph bar means fastest in FPS. The GREEN bar highlights the GeForce GTX 780 6G we are deeming the 'sweet spot.')

DaVinci Resolve 10
We imported a 289 frame 5K RED clip into an HD 1080PsF 25 project with Decode Quality set to "Half Res. Good."
We performed a playback with 16 blur nodes being rendered on-the-fly.

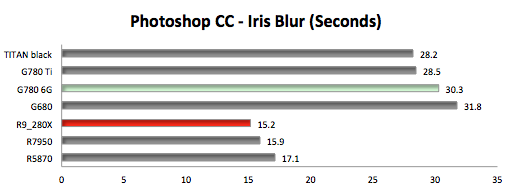

Photoshop CC
One of the filters that uses OpenCL is Iris Blur.

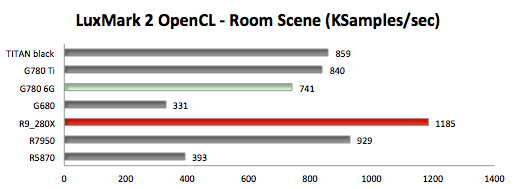

LuxMark
This is another OpenCL test. We rendered the complex Room scene using GPU only.

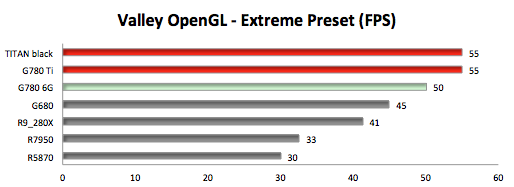

Valley
Using OpenGL, it features advanced visual technologies (dynamic sky, volumetric clouds, sun shafts, DOF, ambient occlusion) while ÔflyingÕ over extremely detailed, seamless terrain. We selected the Extreme Preset which runs at 1600x900 with Ultra quality and 8x Anti-aliasing.

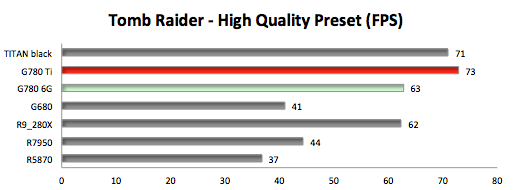

Tomb Raider
Feral Interactive conveniently includes a built-in benchmark. We ran it with the HIGH Quality preset, Fullscreen, 2560x1440, Vsync off.

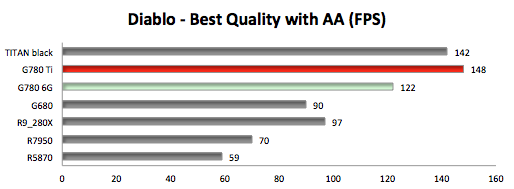

Diablo III
Using the best settings with no vsync at 2560x1440, we entered the game at the same location and observed FPS.

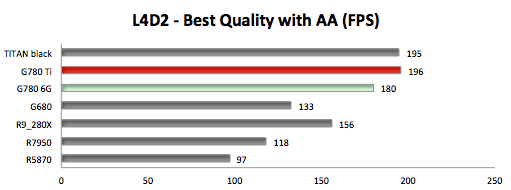

Left 4 Dead 2 on Steam
We ran the TIMEDEMO of a recorded game sequence we call 'BF5.' The Advanced Settings were 2560x1440 Rez, Fullscreen, 4x MSAA, Anisotropic 8X, Vsync Disabled, Shader Detail Very High, Effect Detail High, Model/Texture Detail High, Multicore Rendering Enabled.

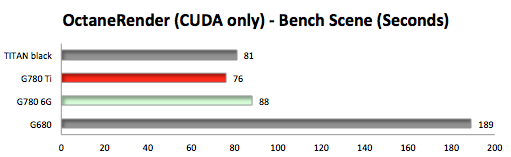

OctaneRender
A "GPU only" standalone renderer, it requires a CUDA capable GPU (spelled NVIDIA). Using RenderTarget PT (Path Tracing), we rendered the octane_benchmark.ocs scene.

After Effects CC
The Ray-traced 3D function renders with GPUs exclusively -- if they are CUDA capable. We used an animation simply known as robot" provided courtesy of Juan Salvo and Danny Princz. Danny has posted a compilation of render times.

To repeat, the RED graph bar means fastest. The GREEN bar highlights the GeForce GTX 780 6G we are deeming the 'sweet spot.'

SWEET? Yes, with one exception.

The GTX 780 with 6GB GDDR5 video memory is only slightly slower than the GTX 780 Ti and TITAN Black but costs much less.

The other factor in naming it the 'sweet spot' has to do with power. The GTX 780 6GB runs fine on the dual PCIe internal power cables -- as does the GTX 680 and Radeon HD 7950. The same can't be said of the GTX TITAN or GTX 780 Ti or Radeon R9 280X -- all of which require an auxiliary power feed to avoid a nasty power down of your tower at the worst moment when too much wattage is demanded of the Mac Pro's factory power supply.

Did I mention that the GTX 780 with 6GB of GDDR5 matches the 6GB of GDDR5 in the TITAN?

The one fallacy to my 'sweet spot' award has to do with OpenCL. In case you hadn't noticed, the AMD Radeon GPUs smoked the NVIDIA GeForce GPUs running Photoshop's OpenCL accelerated Iris Blur filter and rendering LuxMark's OpenCL accelerated Room scene.

Comments? Suggestions? Feel free to email me, Follow me on Twitter @barefeats
