FUTURE MAC PRO GPUs:
Radeon HD 4870?
Or GeForce GTX 280?

Originally posted August 11th, 2008, by rob-ART morgan, mad scientist
Updated August 29th, 2008, with Radeon 4870 X2 results

If you are a hard core Mac Pro enthusiast like me, you are looking forward to the next killer Mac -- like the "Nehalem" based Mac Pro. But it won't be much "fun" unless Apple (or third parties) offer cutting edge graphics processors (GPUs) like the ATI Radeon HD 4870 and the nVIDIA GeForce GTX 280. Because these GPUs are not (yet) available in a version that runs under Mac OS X, we used Vista Ultimate (Boot Camp partition) to run three 3DMark06 Feature Tests and four 3D accelerated games to test their potential compared to the current crop of available GPUs for the Mac Pro.

Futuremark 3DMark06 is a popular benchmark that shows the potential of graphics cards. Using the Professional Edition, we ran the HDR/SM3 test and two Feature Tests at 2560x1600. First, here's the results for the HDR/SM3 test:

Then we ran the Fill Rate (Multi-Texturing) test:

Thirdly, we ran the Shader Particles test:

Next we ran four 3D accelerated games.

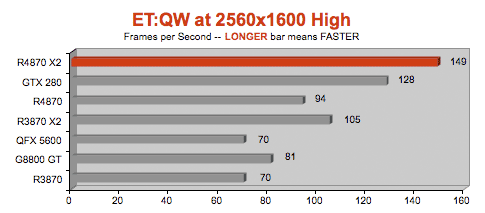

ID Software ENEMY TERRITORY: QUAKE WARS (ETQW)
For Enemy Territory: Quake Wars (ETQW) we recorded our own netdemo which includes running/shooting and flying/shooting. We set "com_unlock_maxfps" to "0" to overcome the 60 FPS limit.

EPIC UNREAL TOURNAMENT III
For the UT3 tests, we used the Suspense Flyby. The Flyby emphasizes GPU speed. Though a Botmatch is more like actual game play, the artificial intelligence varies the actions of Bots from run to run, making it impossible to get a repeatable results.

Activision CALL of DUTY 4: Modern Warfare
We ran a timedemo created by Bryan C. of InsideMacGames with maxFPS set to 500 to overcome the 90 fps default max.

Electronic Arts CRYSIS
We chose the GPU benchmark and HIGH settings.

LEGEND of GRAPHS
R4870 X2 = Sapphire Radeon HD 4870 X2 100251SR (2GB GDDR5)
GTX 280 = BFGTech GeForce GTX 280 (1GB GDDR3)
R4870 = Diamond Radeon HD 4870 (512MB GDDR5)
R3870 X2 = MSI Radeon HD 3870 X2 (1GB GDDR3; Overclocked)
QFX 5600 = nVIDIA Quadro FX 5600 (Apple CTO)
G8800 GT = nVIDIA GeForce 8800 GT (Apple CTO or kit)
R3870 = ATI Radeon HD 3870 Mac & PC Edition (Retail upgrade kit)

Vista 64 Ultimate was running in the Boot Camp partition of a Mac Pro "Harpertown" 3.2GHz octo-core with 16GB of RAM.

OUR SUGGESTION TO APPLE FOR FUTURE GPUs
We hope Apple will "leap frog" the GeForce GTX 280 and Radeon HD 4870 to offer the Radeon HD 4870 X2 dual processor card with 2GB of GDDR5 as a CTO option on the next generation of Mac Pro. And if they don't, we hope ATI/AMD will offer it as a retail kit that is compatible with all models of Mac Pro.

One big advantage of the Radeon HD 4870 X2 as a future Mac Pro option is that affords the advantages of CrossFire for both Mac OS X and Windows. If you just have dual Radeon HD 3870s or 4870s with a CrossFire jumper, it only provides a speed boost under Windows.

Whatever Apple chooses next for an optional GPU, we hope it's an ATI Radeon card. Why? Because ATI has optimized their Mac Edition drivers and firmware for the Radeon 2600 XT and 3870 so that they run Core Image effects much faster than comparable nVidia cards including the GeForce 8800 GT and Quadro FX 5600. Unless there's a breakthrough on the nVidia side, the ATI Radeon cards will continue to be superior for getting GPU intensive work done on Pro Apps like FCP, Motion, Aperture, etc.
