SHOOTOUT: SAS versus SATA -
One, Two, Three, and Four Drives

Originally posted March 21st, 2008, by rob-ART morgan, mad scientist

We have replaced the original article comparing four drive RAID 0 sets to this one which compares single drive to dual drive RAID 0 to triple drive RAID 0 to quad drive RAID 0. It changed the way we view the SAS vs SATA debate.

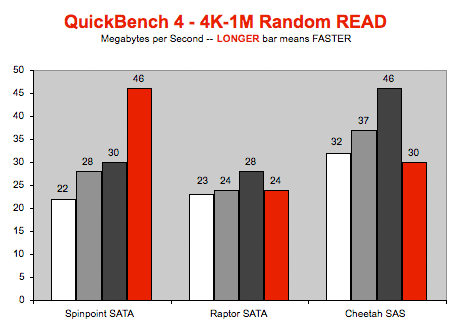

GRAPH LEGEND
The bars show the speeds of one, two, three, and four drives
WHITE is single drive, RED is a four drive RAID 0 set
Spinpoint SATA = Samsung Spinpoint 7K 1000GB 3G SATA drives
Raptor SATA = Western Digital 10K Raptor 150GB 1.5G SATA drives
Cheetah SAS = Seagate Cheetah 15K 300GB SAS drives w/ SAS host adapter
(The SATA drives used the built-in SATA controller of the "early 2008" Mac Pro 3.2GHz test unit.)

INSIGHTS
When we first tested the SAS vs SATA drives in only a four drive RAID 0 set, the 7K Spinpoint SATA drives surprised us by "smoking" the 15K SAS drives. But we saw a different picture when we tested single drives, two drive RAID 0, and three drive RAID 0.

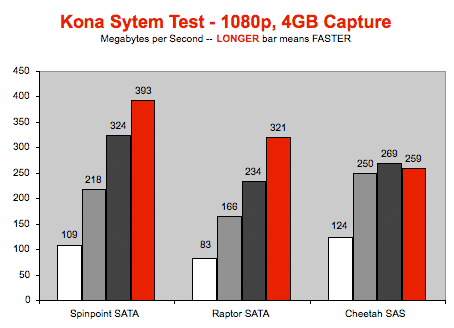

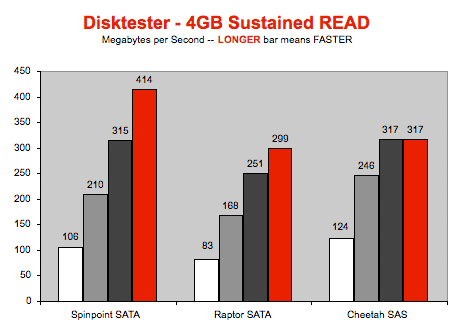

Seems that the SAS storage system hits the wall at 320MB/s. My guess that it's feeding all four drives from a single data channel that maxes at 320MB/s. That would explain why the three and four drive 7K Spinpoint SATA RAID 0 sets go much faster since each drive has a 300MB/s (3 gigabit) data channel dedicated to it.

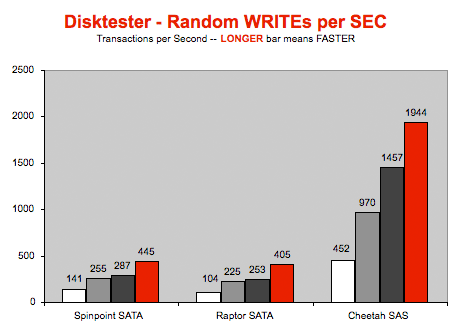

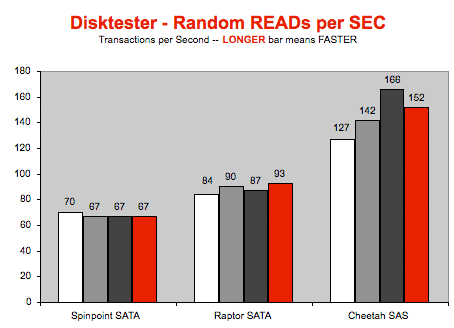

So it looks like if you want to use the SAS drives for a single or dual drive boot set, it's the top dog as expected -- especially when you look at those Disktester 4K transactions per second. But if you are looking for drives that can capture or playback large video files, the 7K one terabyte Spinpoints appear to be the way to go. Plus they have a clear storage capacity and price advantage over the SAS CTO storage system option offered by Apple for the "early 2008" Mac Pro.

BIG MAHALO
Thanks goes to DemoCrafters.com for providing the SAS storage for testing.
